LCD Spec
| Size | Dot-Comp. (H x V dot) |
Active Area (W x H mm) |
Pixel Pitch (W x H mm) |
Number of colors |
View Angle (V/H) |
Backlight System/Driver |
Backlight Life (Typ.) |
LCD I/F |
|---|---|---|---|---|---|---|---|---|
| 4.3w | 480 x 272 (R,G,B) |
95.04 x 53.856 | 0.198 x 0.198 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Not Installed | 50,000h | CMOS 3.3V Parallel |
| 7w | 1024 x 600 (R,G,B) |
154.21 x 85.92 | 0.1506 x 0.1432 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Installed | 50,000h | LVDS |
| 10.1w | 1024 x 600 (R,G,B) |
222.72 x 125.28 | 0.2175 x 0.2088 | 16.7M (Color 8bit) |
-85～85/ -85～85 |
LED/Installed | 50,000h | LVDS |
| 12.1w | 1280 x 800 (R,G,B) |
261.12 x 163.2 | 0.204 x 0.204 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Installed | 50,000h | LVDS |
| 15.6w | 1920 x 1080 (R,G,B) |
344.16 x 193.59 | 0.179 x 0.179 | 16.7M (Color 8bit) |
-89～89/ -89～89 |
LED/Installed | 50,000h | LVDS (Dual channel) |
| 21.5w | 1920 x 1080 (R,G,B) |
476.064 x 267.786 | 0.248 x 0.248 | 16.7M (Color 8bit) |
-89～89/ -89～89 |
LED/Installed | 50,000h | LVDS (Dual channel) |
Specifications for each model
| Size | Model | Touch- screen *1 |
Brightness | Controller I/F |
touch points/ Continuous striking life |
Ambient temp. /for storage |
Dimensions (H x V x Dmm) |
Weight |
|---|---|---|---|---|---|---|---|---|
| 4.3w | TK-SPA043WQ-101 | PCAP G/F/F |
550cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
119 x 81 x 5.17 | 75g ±10% |
| 4.3w | TK-SRA043WQ-101 | Resistive F/G |
500cd/㎡ | Controller Sold Separately |
1 point/ 1M times |
-20 ～ 70℃/ -30 ～ 80℃ |
105.4 x 67.1 x 3.9 | 55g ±10% |
| 7w | TK-SPA07BWS-111 | PCAP G/F/F |
440cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
186 x 118 x 12.18 | 195g ±10% |
| 7w | TK-SPA07BWS-101 | PCAP G/G |
430cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-30 ～ 80℃/ -30 ～ 80℃ |
166.62 x 108 x 13.03 | 225g±10% |
| 7w | TK-SRA07BWS-101 | Resistive F/G |
390cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 80℃/ -30 ～ 80℃ |
167.75 x 101.36 x 12.08 | 170g±10% |
| 10.1w | TK-SPA101WS-111 | PCAP G/F/F |
440cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
255 x 161 x 8.54 | 335g ±10% |
| 10.1w | TK-SPA101WS-101 | PCAP G/G |
430cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
235.63 x 143 x 9.95 | 385g±10% |
| 10.1w | TK-SRA101WS-101 | Resistive F/G |
390cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -30 ～ 80℃ |
238.06 x 143.15 x 8.66 | 360g ±10% |
| 12.1w | TK-SPA121WX-111 | PCAP G/F/F |
350cd/㎡ | USB/I2C |
10 point/ T.B.D. |
-20 ～ 70℃/ -20 ～ 70℃ |
296 x 202 x 12.14 | 680g ±10% |
| 12.1w | TK-SPA121WX-101 | PCAP G/G |
340cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -20 ～ 70℃ |
278 x 184 x 13.55 | 750g ±10% |
| 12.1w | TK-SRA121WX-101 | Resistive F/G |
310cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -20 ～ 70℃ |
279.56 x 184 x 12.26 | 720g ±10% |
| 15.6w | TK-SPA156FH-111 | PCAP G/F/F |
400cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
386.2 x 241.4 x 12.14 | 1,545g ±10% |
| 15.6w | TK-SPA156FH-101 | PCAP G/G |
390cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
363.8 x 215.9 x 12.85 | 1,490g ±10% |
| 15.6w | TK-SRA156FH-101 | Resistive F/G |
350cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -30 ～ 80℃ |
364.53 x 215.9 x 11.56 | 1,430g ±10% |
| 21.5w | TK-SPA215FH-111 | PCAP G/F/F |
350cd/㎡ | USB/I2C |
10 point/ 50M times |
0 ～ 60℃/ -20 ～ 60℃ |
523 x 321 x 16.3 | 2,795g ±10% |
| 21.5w | TK-SPA215FH-101 | PCAP G/G |
340cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
0 ～ 60℃/ -20 ～ 60℃ |
497.6 x 287 x 17.07 | 2,740g ±10% |
| 21.5w | TK-SRA215FH-101 | Resistive F/G |
310cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
0 ～ 60℃/ -20 ～ 60℃ |
500.52 x 293.2 x 15.78 | T.B.D. |
*1 “G/F/F”: glass/film/film (1 layer of glass/2 layers of film) “F/G”: film/glass (1 layer of film/1 layer of glass) “G/G”: glass/glass (2 layers of glass)
When conditions are tough, your technology should be tougher.

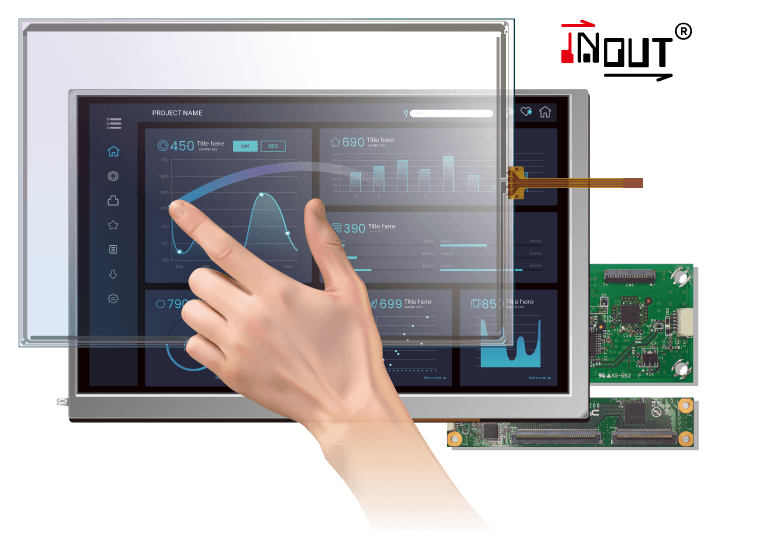

The INOUT Series delivers precise multi-touch control, even with gloves, water, and direct sunlight. Increase user productivity, device accuracy, and operational safety in any environment.
Built for Confidence. Delivered with Speed. Simplify your HMI.
DMC guarantees Human Machine Interface (HMI) quality and supply.
Why INOUT?
- Fast, Stable Supply: No long lead times or unpredictable imports.
- Low Minimums: Order from just 1 unit.
- Made for Harsh Environments: Engineered for performance in tough industrial conditions.
Trusted Touch from DMC
Built to perform in the toughest environments, DMC's touch sensors support both resistive and capacitive technologies, with four product types tailored by size and application.
Touchscreens are essential to contemporary equipment interfaces. In industrial, medical, and outdoor environments where temperature shifts, vibration, and dust are common, performance and durability are non-negotiable.
Firmware customization is available to meet specific customer needs, such as increasing noise filters, adjusting sensitivity for gloved operation, or enabling palm rejection.
With over 30 years of engineering experience, DMC is a market leader in touch technology—especially for industrial equipment. We deliver proven quality and innovation you can count on.
The choice is yours depending on your application
Clear View
Ease of Use
Damages
Case study by touchscreen type
Various
Cover glass solution (Capacitive only)
Custom print designs, anti-glare, and anti-fingerprint finishes available for any design/size/thickness.
Custom Options Available Lot size ~100 units
Material: Normal/Strengthened
Surface treatment: Clear /AG+AF/AR+AF/AF
Thickness: 1.1mm/1.8mm
Corner processing: R (radius) processing
End surface treatment: thread chamfering
Size: Can be specified
Print color: Single color/2 colors/3 colors
Electronic data submission: Yes
Assembly methods etc…
Resistive touch controller
DMC's resistive touch controller allows gesture control using two fingers
Flick
Pinch: In and Out
Pan
Rotate
Smartphone-like operation even with resistive touch panels.
DMC's proprietary technology in an advanced resistive touch controller enables pinch, flick, rotate, and pan. Choice of IC or board.
